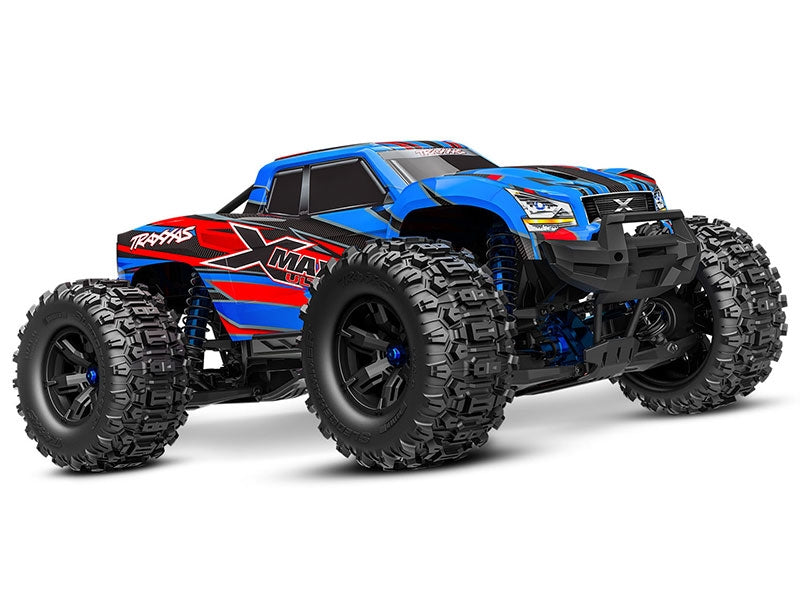

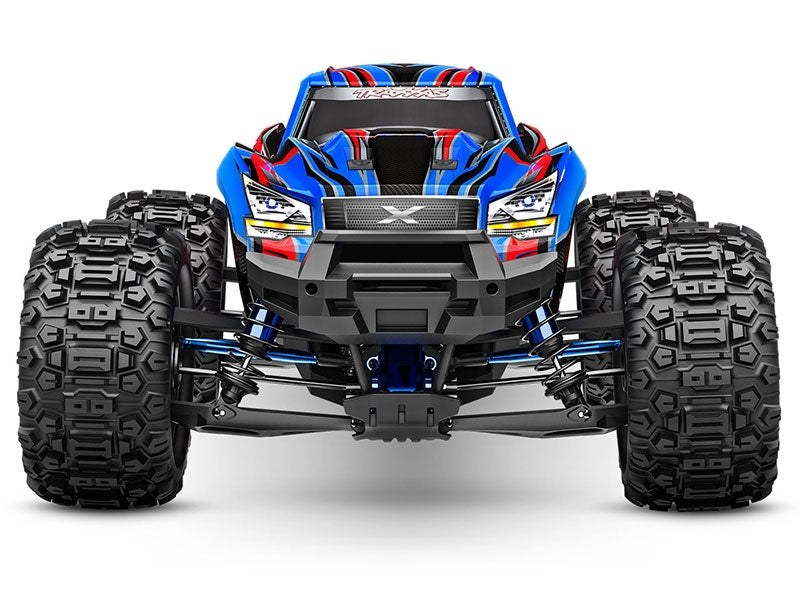

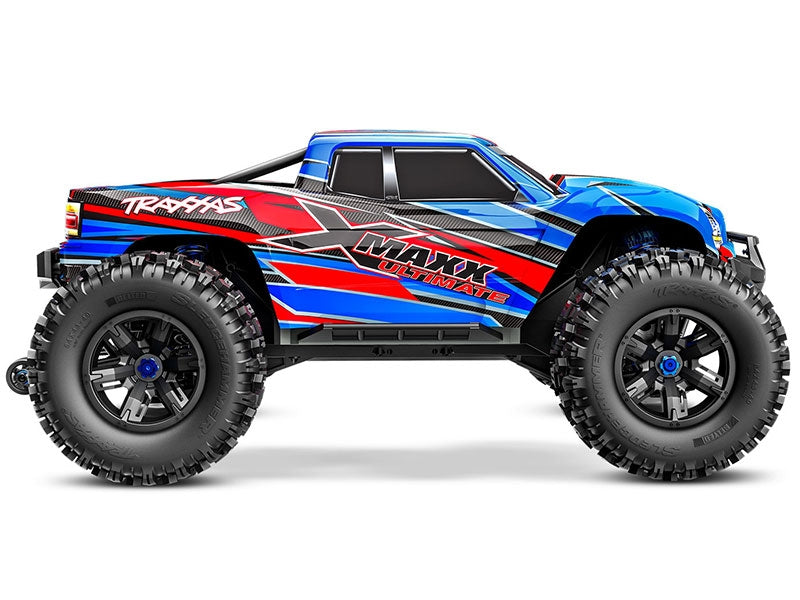

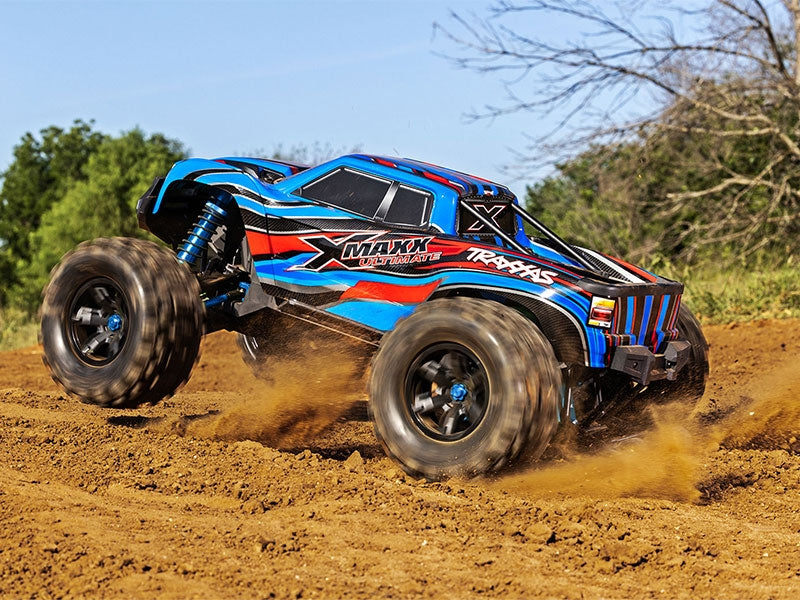

TRAXXAS X- MAXX ULTIMATE

GET READY TO EXPERIENCE THE ULTIMATE 8S RACE TRUCK

ULTIMATE DURABILITY

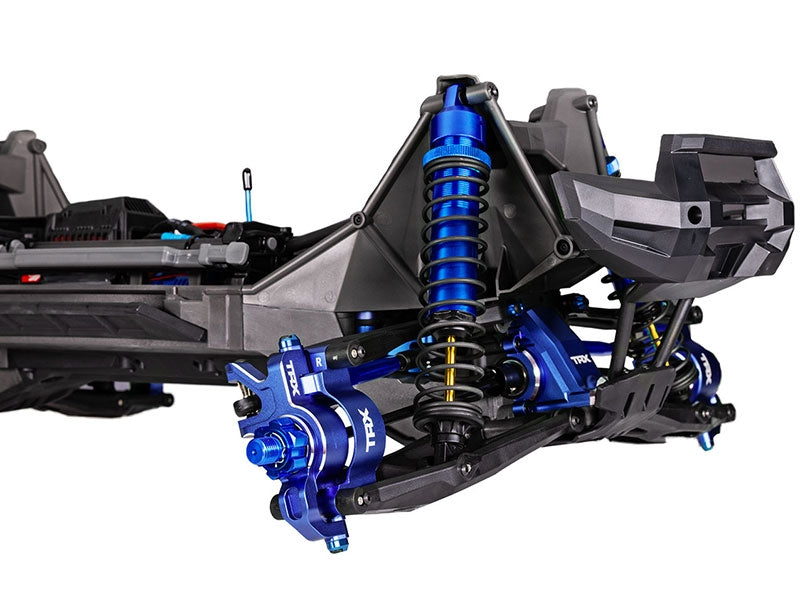

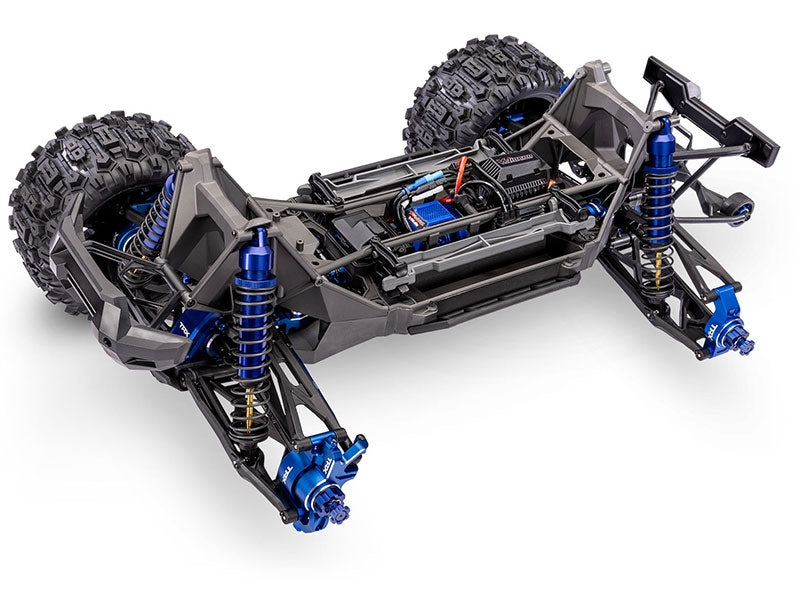

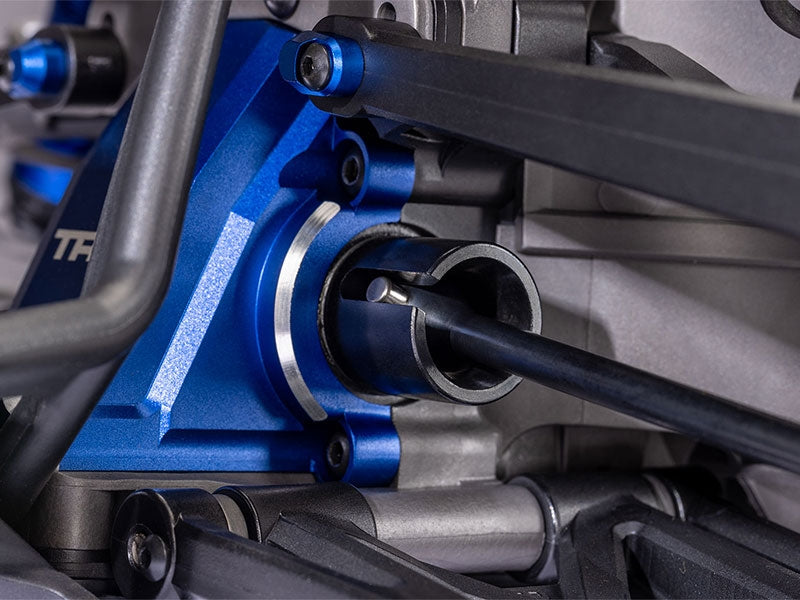

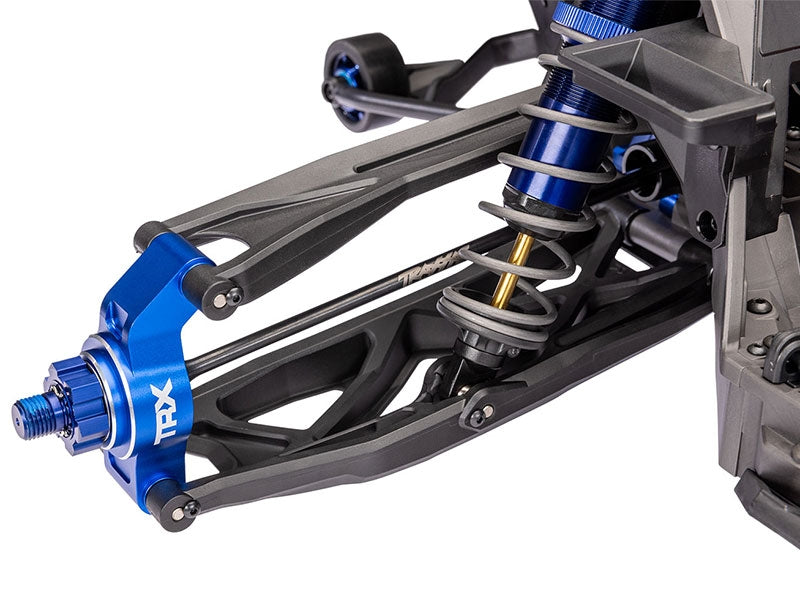

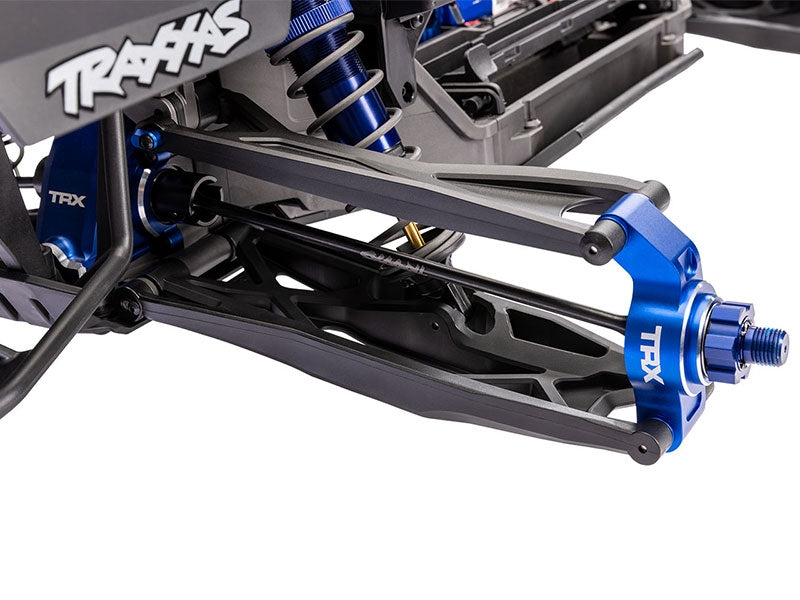

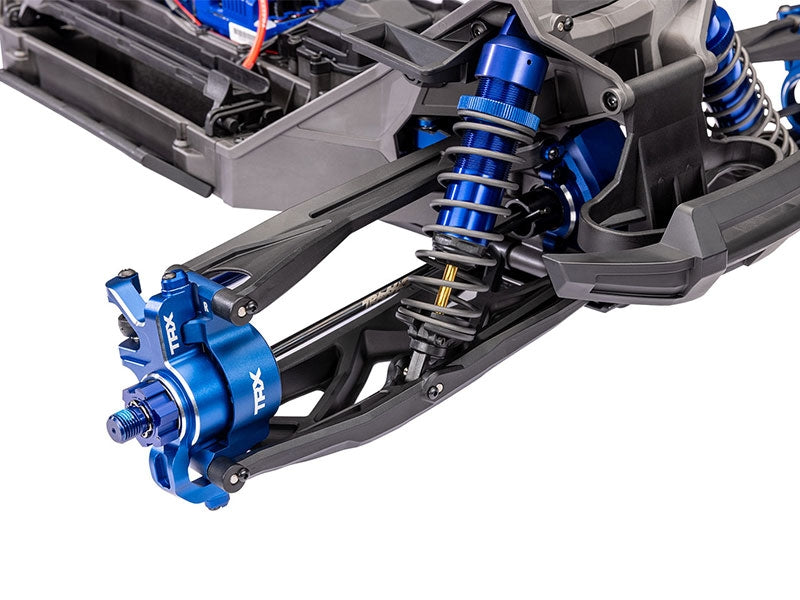

How do you improve the toughest truck ever to wear the Traxxas name? You add aluminum—lots of aluminum! X-Maxx receives substantial aluminum upgrades in all key areas of performance: suspension, chassis, drivetrain, and steering to usher in a new era of strength and durability.

INCLUDED WIRELESS MODULE
A Traxxas Link™ Wireless Module comes standard on X-Maxx Ultimate to take full advantage of its on-board telemetry. The free Traxxas Link app allows you to make micro-adjustments to the transmitter and view real-time telemetry data like speed, RPM, and battery voltage on your mobile device.

BELTED TIRES

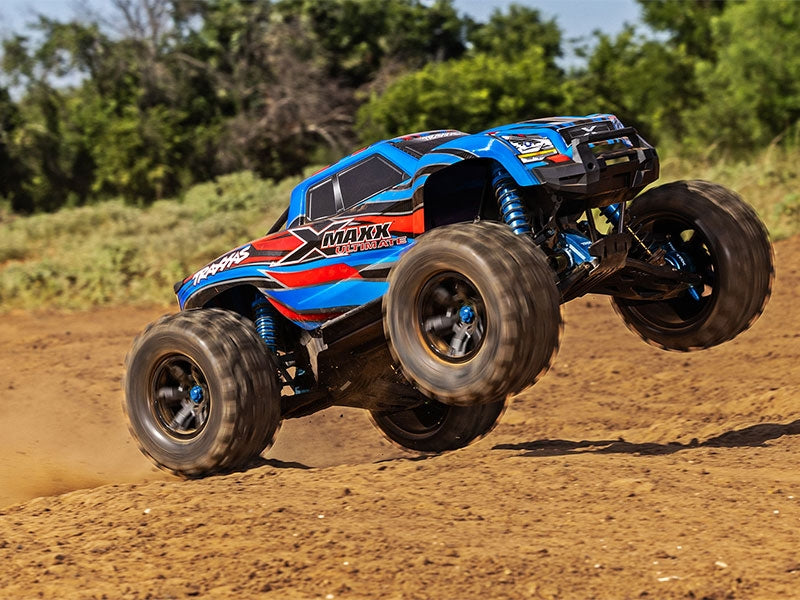

X-Maxx Ultimate’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

• Length: 30.67 inches (779 mm)
• Front Track: 21.3 inches (540 mm)
• Rear Track: 21.3 inches (540 mm)
• Ground Clearance: 4.2 inches (107 mm)
• Weight: 22.20 pounds (9.5 kg)
• 25.06 pounds (11.39 kg) with two 4s 6700 mAh LiPo batteries
• Height (ride): 13.99 inches (355 mm)
• Wheelbase: 18.92 inches (480 mm)
• Shock Length: 7.4 inches (187 mm)
• Tires (pre-glued): Belted Sledgehammer® 8.4″ x 4.0″ (203 mm)
• Wheels: 4.3″ x 5.7″ (110x145 mm)
• Wheel Hex Size: 24 mm splined hex
• Speed Control: Velineon® VXL-8s™
• Motor (electric): Velineon 1200XL
• Transmission: Single-speed
• Overall Drive Ratio: 8.11 (stock, out-of-box)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: Module 1.0
• Chassis Structure/Material: Composite nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD

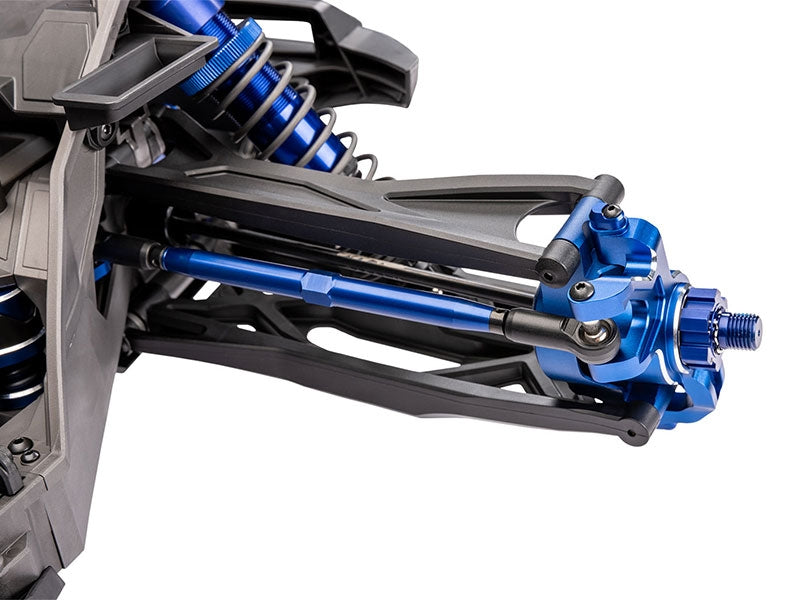

• Steering: Aluminum bellcrank
• Radio System: TQi™ 2.4 GHz transmitter with factory-installed wireless module
• Servo: Torque: 450 oz-in speed: 0.17 sec/ 60 degrees (6.0 volts)
• Top Speed: 50+ mph with two 4s LiPo batteries and optional gearing (sold separately)
• Battery Tray: 197 mm x 52 mm x 44 mm
• Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)

What’s In The Box:

• X-Maxx Ultimate, Ready-To-Race model with Traxxas Big Block™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi 2.4 GHz radio system with factory-installed wireless module
• High quality maintenance tools

What You’ll Need:
Batteries

• IMPORTANT: X-Maxx Ultimate requires the use of LiPo batteries equipped with Traxxas High Current Connectors. Traxxas 4-Cell, 6700 mAh or greater, Power Cell LiPo batteries with iD are recommended (part 2890X).

LiPo Balance Charger with iD®

• Traxxas EZ-Peak® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).

AA Alkaline Batteries

• Four AA alkaline batteries for the transmitter.
